10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed

Name: 10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
Brand: GuRen
Price: 19 USD

China 10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed wholesale

Brand Name : GuRen

Model Number : A1M

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : ≤10A

Peak current : 20A

Length : 28.3mm

width : 14.3mm

Speed : 1800rpm

Housing Material : Aluminum Alloy

Contact Now

A1M single channel liquid slip ring, the slip ring adopts aluminum alloy shell, single-side stud lock, conventionally can pass 10A current, small size and easy installation.

A1M single channel liquid slip ring Product features

1. The product is small, with a length of 28.3mm, suitable for installation in various narrow areas
2. Low resistance, transmission is effective in reducing energy loss
3. 1800rpm per minute speed, suitable for various rotating equipment with high speed requirements.

A1M single channel liquid slip ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

A1M single channel liquid slip ring Product size drawing

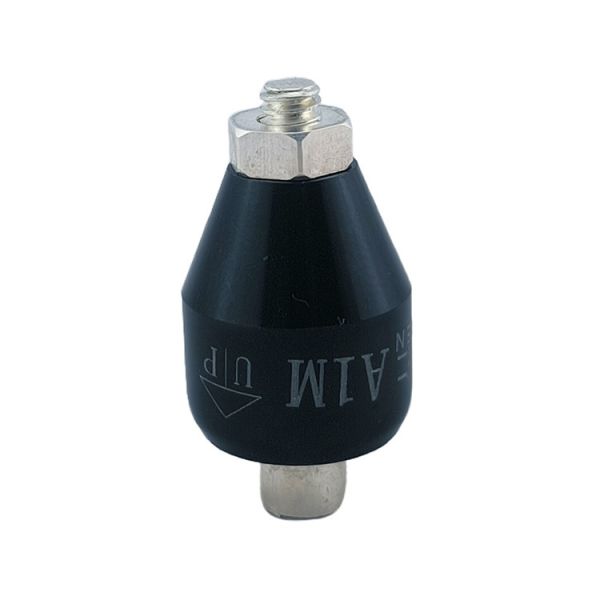

A1M single channel liquid slip ring Product Pictures

A1M single channel liquid slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
